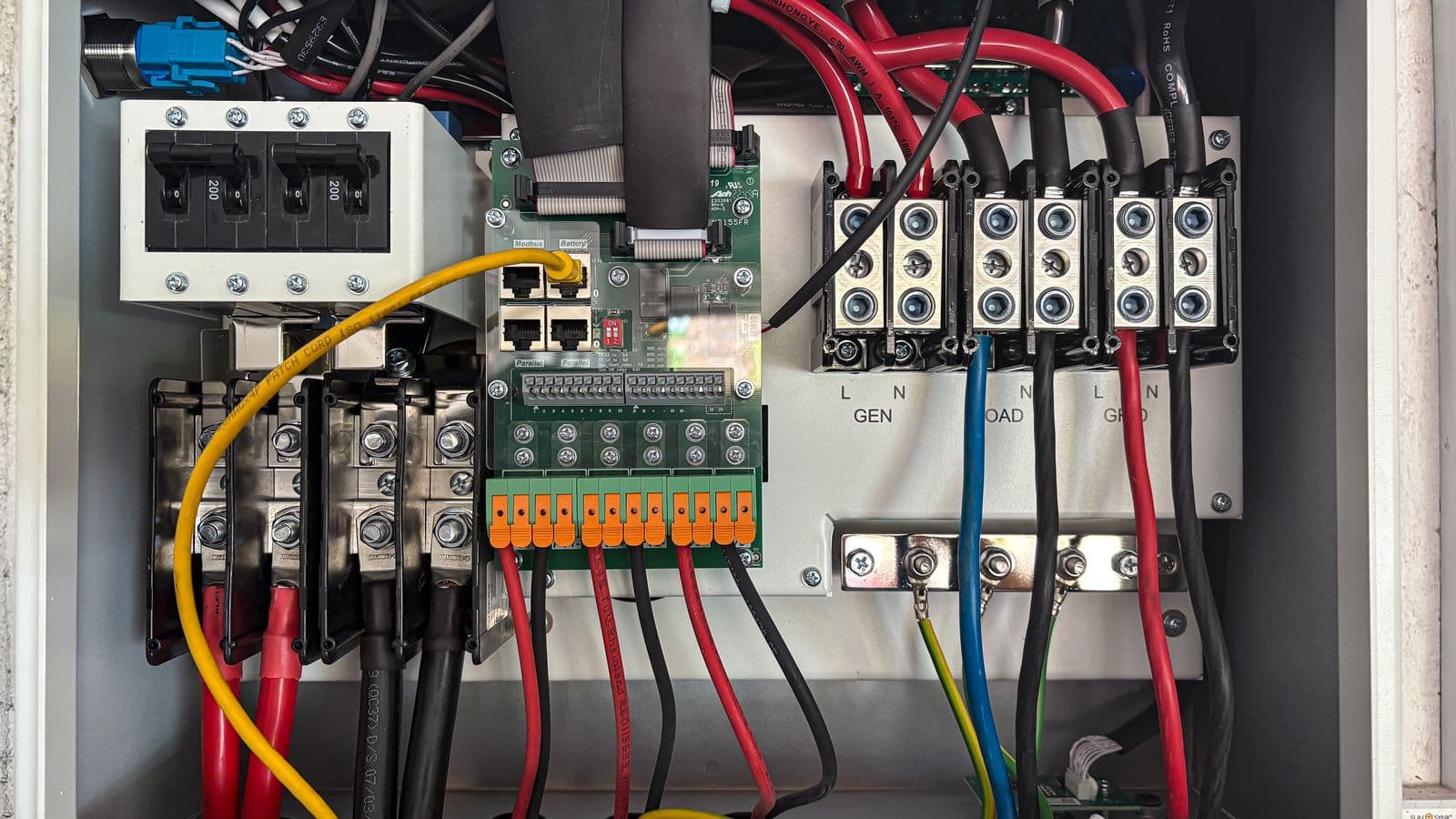

What Is a Short-Circuit Calculation and Why Is It Mandatory? An IEC 60909 Guide

One of the most overlooked yet most critical calculations in an electrical project is the short-circuit calculation. Done incorrectly, breakers and fuses either trip unnecessarily, or — far more dangerously — fail to trip in time during a real fault. This guide explains what a short-circuit calculation is, why it's mandatory for nearly every MV/HV facility, and the risks that arise when it's done wrong.

What Is a Short Circuit?

A short circuit occurs when two conductors that should normally sit at different potentials — such as phase and neutral, or phase and earth — come into contact through a low-resistance path. At the moment of contact, a current many times, sometimes hundreds of times, larger than normal operating current flows through the circuit. In a fraction of a second, this current can cause severe thermal and mechanical damage to cables, panels and equipment — which is why the system's ability to interrupt this current quickly and safely must be calculated in advance.

What Does a Short-Circuit Calculation Determine?

A short-circuit calculation determines the maximum and minimum fault currents that can occur at different points in the facility. These values directly inform:

• Breaker and fuse selection: the devices' short-circuit breaking capacity (Icu/Icn) must safely interrupt the calculated maximum current.
• Cable and busbar sizing: conductors must withstand the thermal effect of the fault current for the brief duration it flows.
• Protection coordination (selectivity): ensuring that only the nearest protection device trips for a fault at a lower level, without needlessly tripping upstream devices.
• Equipment mechanical rating: MV switchgear and panels must be selected to withstand the mechanical (electrodynamic) forces the fault current generates.

The IEC 60909-0:2016 Method

The internationally recognized method for short-circuit calculation is IEC 60909-0:2016. Rather than modeling real operating conditions, it uses an "equivalent voltage source" approach based on the worst-case scenario — keeping the calculation on the safe side even as operating conditions change. The standard defines separate calculation methods for both symmetrical three-phase faults and asymmetrical faults (phase-to-earth, phase-to-phase, two-phase-to-earth).

How the Calculation Process Works

1. System modeling: impedance values are established for every component — transformers, cables, busbars, motors.
2. Obtaining the grid short-circuit power: the grid short-circuit power (Sk") at the connection point is obtained from the utility — the calculation cannot proceed without this value.
3. Calculating maximum fault current: for breaker and fuse selection, the scenario where the facility could face the highest fault current is calculated.
4. Calculating minimum fault current: to confirm protection devices will actually trip, the scenario with the most distant, lowest-current fault is calculated — a step that's often skipped but critical to protection reliability.
5. Feeding into protection coordination: the calculated current values are used to stage breaker and fuse settings on a selectivity basis.

Why Is It Mandatory for Nearly Every MV/HV Facility?

For facilities with their own substation fed at medium or high voltage, the short-circuit calculation is a standard part of the provisional-acceptance file — because the utility and the OIZ require proof that the selected breakers and fuses can safely interrupt the real fault current. Without that proof, even a protection system that looks correct on paper can fail in the field.

The Consequences of an Incorrect or Missing Calculation

• Undersized breaking-capacity equipment: if the real fault current exceeds the selected device's breaking capacity, the device can explode or fail to extinguish the arc during a fault — a serious safety risk.
• Loss of selectivity: if stages aren't correctly coordinated, a small fault at a lower level can trip the upstream breaker feeding the entire facility — an unnecessarily wide outage.
• Ignoring minimum current: calculating only the maximum current and skipping the minimum means protection devices at distant points may not trip in time for smaller faults — the fault persists longer and fire risk increases.
• Rejection at provisional acceptance: an incomplete or inconsistent short-circuit report is directly rejected by the OIZ or utility, delaying energization.

The Relationship Between Short-Circuit Calculation and Protection Coordination

Short-circuit calculation and protection coordination (selectivity) are two inseparable pieces of work. The short-circuit calculation answers "how much current will flow," while protection coordination answers "which device should trip, and when, in the face of that current." If one is done correctly and the other skipped, the system may look safe on paper but won't work reliably in the field.

When Existing Facilities Need to Update Their Short-Circuit Calculation

A short-circuit calculation isn't a document you produce once and rely on forever. It needs updating when:

• Transformer power is increased or the transformer is replaced
• The grid connection point or the utility's short-circuit power value changes
• Large new motors or generators are added to the facility (these also contribute to fault current)
• Cable routing or length changes significantly

Any of these changes can render a previously correct breaker selection inadequate.

The Difference Between Symmetrical and Asymmetrical Faults

IEC 60909-0:2016 doesn't define a single "short-circuit current" — it defines separate calculations for several fault scenarios. A three-phase symmetrical fault usually produces the highest current value and is what breaker/fuse breaking capacity is selected against. Asymmetrical faults — phase-to-earth, phase-to-phase, two-phase-to-earth — produce different current magnitudes depending on the system's neutral-earthing arrangement, and are typically used to set protection-relay sensitivity. Calculating only the symmetrical fault and skipping asymmetrical scenarios can leave a protection gap for more common fault types like earth leakage.

What Should a Calculation Report Include?

A defensible short-circuit calculation report should include: the system single-line diagram, impedance data for every component used, the grid short-circuit power value and its source from the utility, the maximum/minimum current values calculated separately for each busbar point, and a results table comparing these values against the selected breaker/fuse capacities. A report that presents only a final number without showing intermediate steps can't be defended if questioned during an audit or provisional acceptance.

Common Mistakes

• Estimating the grid short-circuit power: a calculation based on an assumed Sk" value, rather than one obtained from the utility, doesn't reflect real conditions.
• Calculating only the maximum current: protection-device reliability can't be verified without also calculating the minimum short-circuit current.
• Ignoring motor contribution: large motors briefly feed additional short-circuit current during a fault; this contribution shouldn't be ignored, especially in motor-heavy facilities.
• Not updating the calculation after facility changes: continuing with an old calculation after a capacity increase or transformer replacement leaves the protection system silently inadequate.

FAQ

Who should perform a short-circuit calculation? A qualified, experienced electrical engineer, following the IEC 60909-0:2016 method with current grid data obtained from the utility.

Will a project be approved without a short-circuit calculation? For MV/HV-connected facilities with their own substation, most OIZs and utilities make this calculation mandatory; incomplete files are rejected.

How long does the calculation take? It depends on the facility's complexity and how quickly grid data can be obtained; getting the required data from the utility promptly significantly shortens the process.

Does a small LV facility need a short-circuit calculation too? LV facilities also require a short-circuit assessment for breaker selection, but the scope and detail are more limited than for MV/HV facilities.

How do I know if my facility's existing short-circuit calculation is still valid? It generally remains valid if there's been no change to the transformer, motors or connection point; if in doubt, the safest approach is to verify by comparing the existing equipment's breaking capacity against current grid data.

Is a short-circuit calculation the same as a voltage-drop calculation? No. Voltage drop calculates the voltage loss under normal operating current based on cable length and cross-section; the short-circuit calculation calculates the abnormally high fault current and its effect on protection devices. Together they validate the same cable-sizing decision from different angles.

Does a facility with a generator need a different calculation? Yes. Generators briefly contribute to fault current even if disconnected from the grid; if this contribution isn't included, protection selectivity can break down while the generator is running.

Is the calculation report an official document I'll need again later? Yes. The report isn't just for approval — it's a reference document for the facility's lifetime, needed again for equipment changes, expansion, or an audit, so it should be kept permanently and accessibly.

Conclusion

A short-circuit calculation is the "invisible" but most critical safety layer of an electrical project. Done correctly, it goes unnoticed — because the protection system quietly works as expected. Done incorrectly, the consequence usually surfaces during a fault, at the worst possible moment. SOREAS performs this calculation on every MV/HV project fully compliant with IEC 60909-0:2016, using current data obtained from the utility, and ties it directly into protection coordination.
